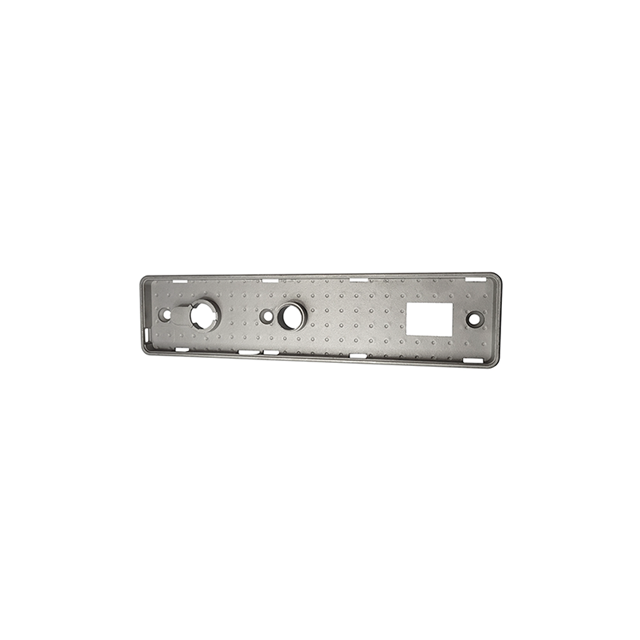

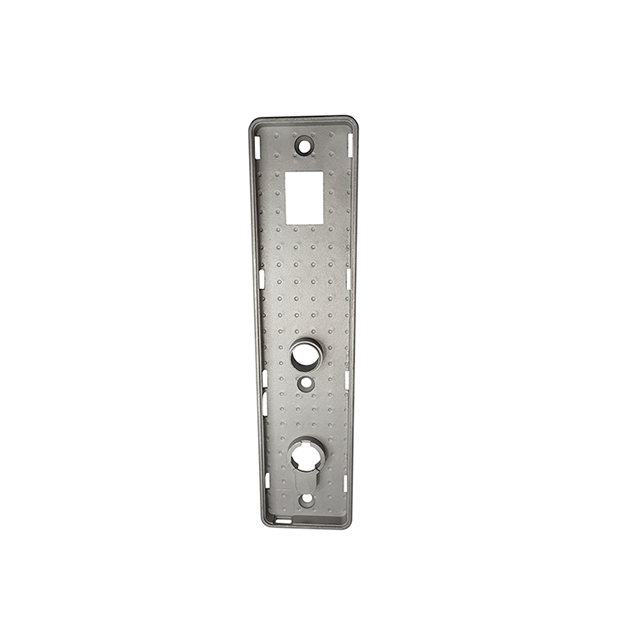

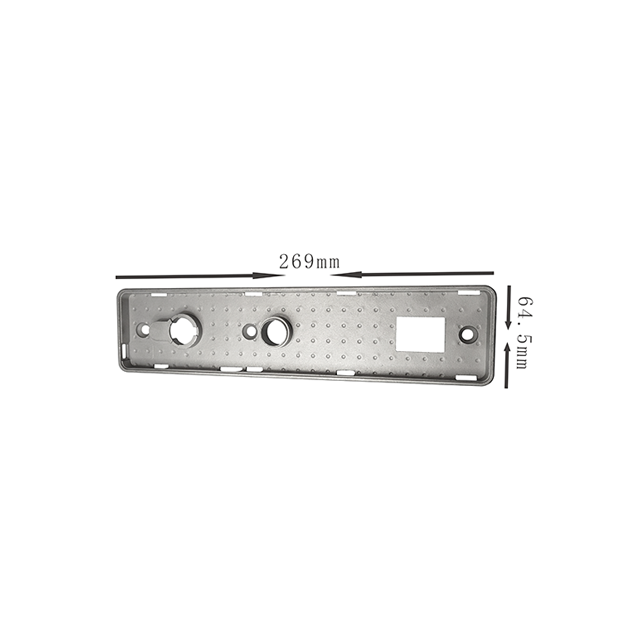

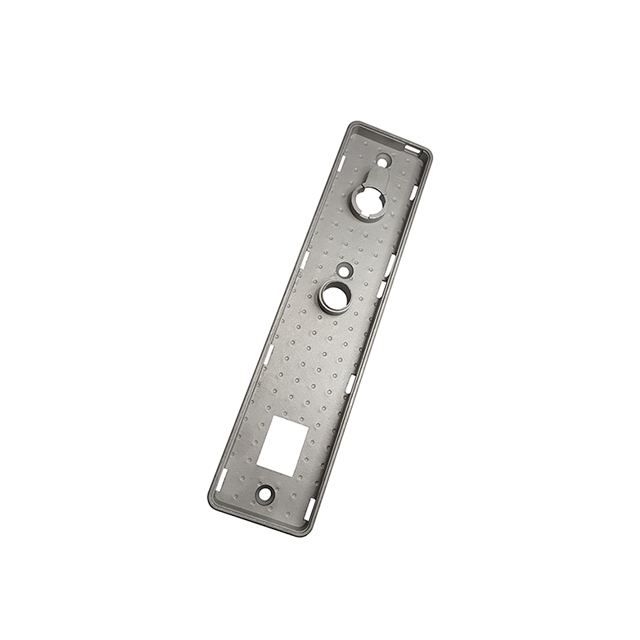

Customized Processing Stainless Steel Fingerprint Lock Panel

Number: JBD006
Surface: No cape burr sand hole
Material: stainless steel
Color: Silver
Classification: Door and window lock accessories
Process: stainless steel precision casting
Tolerance: ± 0.2mm
Brand name: Jinbian Da
Support customization: OEM+ODM
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The fingerprint lock panel is an essential component inside a fingerprint lock. It can be made from various materials and is commonly used in stainless steel fingerprint locks. Fingerprint locks can be installed on different types of doors, such as wooden doors, copper doors, iron doors, copper-wood doors, stainless steel doors, and security doors.


Product Advantage

  1. It has heat resistance and low temperature strength, making it unaffected by temperature limitations.

  2. It has strong corrosion resistance, making it suitable for use in high-salt and high-humidity coastal and tropical rainforest areas.

  3. It has high strength and provides functions like fire resistance, drill resistance, pry resistance, saw resistance, and impact resistance. It has a long lifespan and high security.

  4. The texture is uniform and fine, making it easy to clean and maintain its original appearance for a long time.


Technical Parameters

Number: JBD006

Surface: No cape burr sand hole

Material: stainless steel

Color: Silver

Classification: Door and window lock accessories

Process: stainless steel precision casting

Tolerance: ± 0.2mm

Brand name: Jinbian Da

Support customization: OEM+ODM


Product Uses

The fingerprint lock panel offers security, convenience, intelligence, and anti-prying features. With the rise of smart homes, fingerprint locks have become increasingly popular in the lock market. They are suitable for places that require access control, such as residences, offices, hotel rooms, schools, libraries, laboratories, electronic safes, file cabinets, and more.


Technological Process

Product Design, Mold Making, Wax Injection Mold, Wax Mold Inspection, Tree Assembly, Hook Installation, Wax Mold Cleaning, Slurry Coating (including fine slurry, coarse slurry, and sealing slurry, with only one layer applied per day), Shell Mold Production, Drying in the Slurry Room, Wax Removal, Firing the Shell Mold in a Kiln at around 1200℃, Melting Steel into Molten Steel and adding additives, Pouring the Prepared Molten Steel into the Fired Shell Mold, Natural Cooling, Shell Knockout, Shot Blasting, Cutting, Grinding the Water Outlet, Sand Cleaning, Acid Soaking, Sandblasting, Inspection and Repair, Whitening, Packaging, and a series of post-processing steps until the pump components are completed and meet the required standards.
