Selecting the best CNC turning machine is not just about buying the latest equipment; it is about aligning your production capabilities with the needs of your products, tolerances, and target markets. Whether you manufacture precision electronic components, automotive parts, or custom industrial hardware, the type of CNC turning machine you use will directly impact your efficiency, surface finish, production speed, and cost-effectiveness.
At Dongguan Jinbianda Hardware Products Co., Ltd., we specialize in high-precision CNC turning services, leveraging advanced equipment to deliver consistent quality for global customers. This guide will walk you through what CNC turning machines are, how they work, the main types available, and how to choose the best CNC turning machine for your business, while keeping in mind the latest trends shaping the industry.
A CNC turning machine is a computer-controlled lathe that removes material from a rotating workpiece using stationary cutting tools. The process involves the workpiece being clamped in a chuck and spun at high speeds while cutting tools shape it to the desired geometry, such as cylinders, grooves, tapers, or complex contours.
Unlike manual lathes, CNC turning machines offer high repeatability, tight tolerances, and the ability to produce complex parts with minimal human intervention. CNC turning is essential for producing round or tubular components accurately, efficiently, and cost-effectively, making it a backbone technology for industries such as automotive, aerospace, electronics, and medical devices.
Selecting the correct CNC turning machine can have a significant impact on:
Production Efficiency: The right machine will reduce cycle times, improve throughput, and minimize downtime.
Tolerances and Surface Finish: Different machines handle different tolerance requirements and surface finishes based on rigidity and spindle speeds.
Material Compatibility: Not all machines handle hard metals like titanium or stainless steel efficiently; choosing the right spindle power and rigidity matters.
Long-Term ROI: A well-chosen machine reduces maintenance costs and increases service life, maximizing return on investment.
Complex Part Capability: For parts with undercuts, grooves, and tight tolerances, advanced machines are necessary to maintain quality while reducing secondary operations.
At Jinbianda, the correct machine choice aligns with our goal of delivering high-precision CNC turned parts quickly, consistently, and competitively.
Understanding the different types of CNC turning machines helps in selecting the best one for your specific production needs:
Horizontal CNC turning machines are the most common type. They feature a horizontally mounted spindle where the workpiece rotates while stationary tools perform cutting operations.
Key benefits:
Suitable for medium to large-sized parts.
Excellent for shaft work, bushings, and general cylindrical parts.
Easier chip removal due to horizontal layout.
Limitations:
Limited access to complex geometries unless equipped with live tooling.
Vertical CNC turning machines (vertical lathes) hold the workpiece vertically, with the spindle axis perpendicular to the floor.
Key benefits:
Ideal for large, heavy, and wide-diameter workpieces.
Gravity assists in centering heavy components.
Stable setup for high-mass parts.
Limitations:
Takes up more vertical space.
Less suitable for small parts.
Swiss-type CNC turning machines are designed for high-precision, small-diameter, and long-length parts.
Key benefits:
Excellent for small parts with tight tolerances.
The guide bushing provides stability, allowing for high-speed, high-precision turning.
Can perform simultaneous machining on multiple axes.
Limitations:
Higher upfront machine costs.
Best suited for small parts, not for large workpieces.

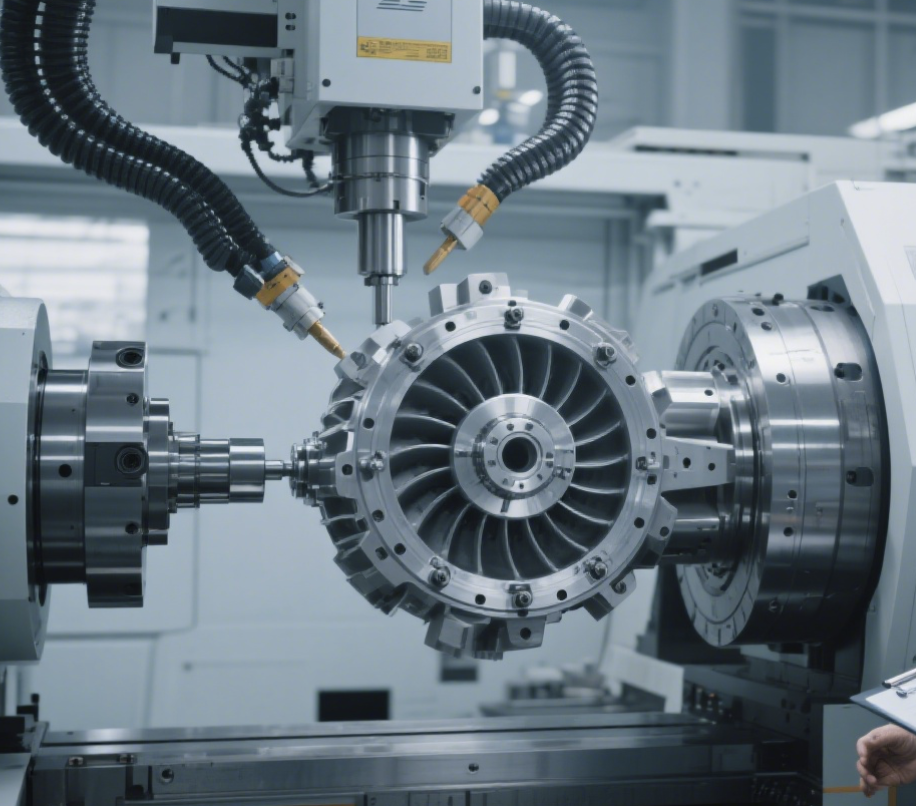

These machines combine 3-axis to 5-axis capabilities, allowing for simultaneous machining on multiple faces of a workpiece.
Key benefits:
Capable of producing complex geometries without secondary operations.
Reduces cycle times by enabling multiple operations in a single setup.
Allows contouring and undercut machining.
Limitations:
Requires advanced programming and skilled operators.
Higher purchase cost.
Combining live tooling with CNC turning, these machines allow turning and milling in a single setup.
Key benefits:
Reduces part handling and secondary setups, improving efficiency.
Allows drilling, milling, and tapping on turned parts.
Suitable for complex parts with both cylindrical and prismatic features.
Limitations:
Complex machine requiring detailed programming.
Higher cost of acquisition and maintenance.
| Feature | Horizontal CNC Lathe | Vertical CNC Lathe | Swiss-Type CNC | Multi-Axis CNC | Turning-Milling Combo |
|---|---|---|---|---|---|
| Part Size | Medium-Large | Large, heavy | Small, precise | Medium-small | Medium-small |
| Axes | 2-3 | 2-3 | 3-4 | 3-5 | 4-5 |
| Best For | Shafts, bushings | Heavy parts | Small complex | Complex parts | Complex parts |
| Surface Finish | High | High | Very High | High | High |
| Production Volume | Medium-high | Medium | High | Medium | Medium |
Choosing the right CNC turning machine involves a comprehensive evaluation of several key factors to ensure that the machine meets your specific manufacturing needs. Here are the critical considerations:
The complexity of the part geometry is a primary factor in selecting a CNC turning machine. Parts with deep grooves, undercuts, or complex contours require machines with live tooling or multi-axis capabilities. For example, a 5-axis CNC lathe can handle intricate geometries more efficiently than a basic 2-axis machine. Simple cylindrical parts, on the other hand, may only require a standard 2-axis horizontal CNC lathe. The ability to perform multiple operations in a single setup reduces cycle times and improves accuracy.
Industries such as aerospace, medical devices, and precision engineering demand tight tolerances and fine surface finishes. Machines with high spindle speeds, rigid structures, and advanced control systems are better suited for these needs. High spindle speeds ensure smooth cutting, while rigid structures minimize vibration, resulting in better surface finishes. Advanced control systems with sub-micron resolution can achieve tolerances as tight as ±0.005 mm, ensuring consistent quality across all parts.
Different materials have varying hardness, machinability, and thermal properties, which influence the choice of CNC turning machine. For example:
Aluminum: Most CNC turning machines handle aluminum efficiently due to its relatively low hardness and good machinability. High-speed machining is often used to achieve high material removal rates and excellent surface finishes.
Hardened Steels/Titanium: These materials require machines with high spindle torque, rigid structures, and coolant management systems. High spindle torque is necessary to cut through tough materials, while rigid structures prevent deflection and ensure accuracy. Coolant management systems help dissipate heat, reducing thermal deformation and tool wear.
The production volume significantly impacts the choice of CNC turning machine. For high-volume runs, machines with automated bar feeders, robotic loading, and fast tool change systems are critical for maintaining efficiency and lowering unit costs. Automated bar feeders can hold multiple bars of material, reducing the need for manual intervention. Robotic loading systems can load and unload parts quickly, increasing overall productivity. Fast tool change systems minimize downtime between tool changes, further reducing cycle times.
Modern CNC turning machines come with advanced controllers that can integrate with CAD/CAM systems for seamless workflow and accurate programming. Controllers with user-friendly interfaces and advanced features like 3D simulation, error compensation, and real-time monitoring enhance the overall machining process. Integration with CAD/CAM systems allows for seamless transfer of design data, reducing programming time and minimizing errors. Advanced controllers also offer features like adaptive control, which adjusts cutting parameters in real-time to optimize performance.
Choose machines with reliable after-sales support, availability of spare parts, and easy maintenance access to minimize downtime. Reliable after-sales support ensures that any issues are resolved quickly, reducing production delays. The availability of spare parts is crucial for timely repairs and maintenance. Easy maintenance access allows for quick and efficient servicing, reducing downtime and maintenance costs. Look for machines with modular designs, which facilitate easy access to critical components.
CNC turning machines equipped with robotic arms and automated bar feeders allow for 24/7 operation with minimal supervision, increasing throughput and reducing labor costs.
Smart CNC machines equipped with IoT sensors can monitor vibrations, temperatures, and tool wear in real-time, enabling predictive maintenance and reducing unexpected downtime.
Combining additive and subtractive processes allows manufacturers to produce complex parts efficiently while reducing material waste.
The use of ceramic inserts and high-speed tooling allows for faster cutting speeds, extended tool life, and the machining of difficult materials without sacrificing precision.
Manufacturers are focusing on CNC machines that consume less energy and use sustainable cooling methods, aligning with environmental goals while reducing operational costs.
At Dongguan Jinbianda Hardware Products Co., Ltd., we utilize a variety of advanced CNC turning machines tailored for high-precision, custom hardware parts. Our capabilities include:
Handling materials from aluminum and brass to stainless steel and titanium.
Producing tight-tolerance parts for automotive, electronics, medical, and industrial sectors.
Leveraging multi-axis CNC turning machines and turning-milling centers for complex geometries.
Utilizing advanced CAD/CAM software to optimize tool paths, reduce waste, and improve surface finishes.
Providing DFM (Design for Manufacturability) support to customers to optimize designs before production.
Our investment in advanced CNC turning technology ensures that we deliver cost-effective, high-quality, and consistent parts to global clients, supporting projects from prototypes to large-scale production runs.
CNC turning rotates the workpiece while a stationary cutting tool shapes it, ideal for cylindrical parts. CNC milling holds the workpiece stationary while rotating cutting tools remove material, suitable for prismatic parts.
They are best for small, high-precision parts used in medical devices, electronics, and precision engineering components.
Yes, but the machine needs to have sufficient spindle torque, rigidity, and coolant management to handle hard materials efficiently.
Depending on the machine and setup, tolerances of ±0.001mm are achievable for high-precision applications.
Consider your part geometry, material, tolerance requirements, batch size, and future scalability. Consulting with experts like Jinbianda helps determine the optimal solution for your project.
Choosing the best CNC turning machine is a critical step in ensuring quality, efficiency, and profitability in modern manufacturing. Whether you require high-volume runs of simple parts or low-volume production of complex geometries, there is a CNC turning machine suited to your needs.
At Dongguan Jinbianda Hardware Products Co., Ltd., we leverage advanced CNC turning technology to deliver precision, reliability, and cost-effective solutions to clients worldwide. By understanding your production goals and aligning them with the correct CNC turning machine, we ensure that your projects are completed with the highest standards in the industry.
