3 Types of Casting Process | Investment | Die | Sand Casting

Have you ever wondered how complex metal parts are made? Think about the parts in a car engine. Or even the metal pieces in a fancy watch. Many of them are created using a special process. This process is called Precision Casting. It is a way to shape molten metal into amazing, detailed forms. It’s like a recipe for making strong, accurate metal objects.

We use these objects every day. They are in our homes, our cars, and our workplaces. This method helps create parts that are both strong and exact. It allows designers to dream up complex shapes. Then, manufacturers can bring those dreams to life. This article explores the best Precision Casting techniques. We will look at how they work. We will see what makes each one unique. You will learn about their strengths and weaknesses. This will help you understand how the perfect metal part is born.

Sand Casting

Sand casting is one of the oldest and most widely used casting methods. It is a very direct way to create metal parts. As the name suggests, it uses sand to create the mold. This technique is a workhorse in the world of Precision Casting. It is known for its ability to create very large parts. It is also quite cost-effective.

Imagine making a shape in wet sand at the beach. Sand casting works on a similar principle. But it is much more advanced. It uses special types of sand and binders. This creates a mold that can withstand the heat of molten metal. It is a simple concept with powerful results.

The Sand Casting Process

The process is simpler than investment casting. It has fewer steps. This makes it faster and often cheaper.

1.  Pattern Making: A pattern is created. It is a model of the final part. The pattern is usually made from wood, plastic, or metal. It is made slightly larger than the final part. This is to account for the metal shrinking as it cools.

2.  Mold Preparation: The process uses a special box called a flask. The flask has two parts: the cope (top half) and the drag (bottom half). The pattern is placed inside the flask.

3.  Packing the Sand: A special casting sand is packed tightly around the pattern. This sand is mixed with a bonding agent, like clay and water. The bonding agent helps the sand hold its shape. The sand is rammed down to make it dense and strong.

4.  Removing the Pattern: Once the sand is packed, the flask is opened. The pattern is carefully removed. This leaves a cavity in the sand. The cavity is the exact shape of the pattern.

5.  Adding Cores (If Needed): If the final part needs to be hollow, a core is used. A core is a separate piece made of sand. It is placed inside the mold cavity. The metal will flow around the core. This creates a hollow section in the final part.

6.  Closing the Mold: The two halves of the flask are put back together. The mold is now ready for the metal.

7.  Pouring the Metal: Molten metal is poured into the mold. It flows through a channel called a gating system. It fills the cavity completely.

8.  Cooling and Shakeout: The metal cools and solidifies. Once it is cool, the mold is broken apart. The sand is shaken away from the casting. This is why it is called shakeout. The sand can often be recycled and used again.

9.  Finishing: The casting is removed. The extra metal from the gating system is cut off. The part might then be cleaned. This can be done by sandblasting. It removes any remaining sand and smooths the surface.

Materials Suited for Sand Casting

Sand casting is great for metals that have high melting points. The sand mold can handle extreme heat.

● Cast Iron: This is a very common material for sand casting. It is strong and inexpensive. It is used for engine blocks, pipes, and machine bases.

● Ductile Iron: This is a type of iron that is more flexible. It is less brittle than regular cast iron. It is used for parts that need to withstand impact.

● Gray Iron: This type of iron is good at dampening vibrations. It is used in machinery housing.

● Steel: Many types of steel can be sand cast. They are used for parts that need high strength and wear resistance.

● Aluminum: Aluminum is also frequently sand cast. It is used for automotive parts like engine manifolds.

● Bronze and Brass: These copper alloys are also suitable. They are used for bearings, gears, and plumbing parts.

Advantages:

● Low Cost: The materials (sand and binders) are cheap. The tooling is also less expensive.

● Good for Large Parts: It is one of the few methods that can produce very large and heavy parts. Some castings can weigh several tons.

● Versatile Materials: It can be used with a wide variety of metals, especially high-melting-point ones.

● Fast Production: The process is relatively quick from start to finish. This makes it good for prototypes.

● Complex Shapes Possible: While not as detailed as investment casting, it can still produce fairly complex shapes, including internal cavities.

Die Casting

Die casting is the speed demon of the casting world. It is a method designed for mass production. It uses a steel mold, called a die, to shape the metal. Think of it like a high-tech waffle iron for metal. The die can be used over and over again. It can produce thousands, or even millions, of identical parts. This makes it a key process for modern manufacturing. It is a form of Precision Casting that focuses on speed and repeatability.

This method is perfect for parts that are needed in huge quantities. Your favorite toy car was probably made this way. So were the metal parts in your phone and your kitchen faucet.

The Die Casting Process

The process is fast and highly automated. It is all about efficiency.

1.  Creating the Die: The first step is to make the die. This is a very precise and durable mold. It is machined from high-strength steel. The die is usually made in two halves. Creating the die is expensive and time-consuming. But this cost is spread out over many thousands of parts.

2.  Preparing the Die: The two halves of the die are installed in a die casting machine. The inside of the die is sprayed with a lubricant. This helps control the temperature of the die. It also makes it easier to remove the casting later. The two halves are then clamped together with immense pressure.

3.  Injecting the Metal: Molten metal is injected into the die cavity. This is done under very high pressure. This is a key feature of die casting. The high pressure forces the metal into every tiny detail of the die. This creates a very accurate and well-defined part. There are two main types of die casting machines:

a.  Hot-Chamber: Used for metals with low melting points, like zinc and magnesium. Part of the injection system is submerged in the molten metal.

b.  Cold-Chamber: Used for metals with high melting points, like aluminum. The molten metal is ladled into the injection system for each shot.

4.  Cooling and Solidification: The metal cools very quickly inside the die. The die is often water-cooled to speed up this process. The fast cooling creates a fine-grained structure in the metal. This makes the part strong.

5.  Ejecting the Casting: Once the metal is solid, the die halves open. Ejector pins push the casting out of the die. The entire cycle, from injection to ejection, can take just a few seconds for small parts.

6.  Finishing: The casting, now called a "shot," may have some extra material. This extra material, from the channels the metal flowed through, is called flash. It is trimmed off. The parts are then ready for use or for further finishing like painting or plating.

Materials for Die Casting

Die casting is mostly used with non-ferrous metals. These are metals that do not contain iron. They typically have lower melting points.

● Aluminum Alloys: This is the most common material for die casting. Aluminum parts are lightweight, strong, and have good heat resistance. They are used everywhere, from car parts to computer cases.

● Zinc Alloys: Zinc is very easy to cast. It allows for extremely thin walls and excellent surface finish. It is heavy and strong. It is used for door handles, faucets, and decorative hardware.

● Magnesium Alloys: Magnesium is the lightest of all structural metals. It is a great choice when minimizing weight is the top priority. It is used in laptops, cameras, and power tools.

● Copper Alloys (Brass): Brass can be die cast. It produces parts that are strong, corrosion-resistant, and have good electrical conductivity. It is used for plumbing and electrical fittings.

Advantages:

● High Speed: The production cycle is extremely fast. This is ideal for large orders.

● Excellent Accuracy and Consistency: Every part is virtually identical to the last.

● Smooth Surface Finish: Parts have a clean, smooth surface. They often do not need further machining.

● Complex, Thin-Walled Parts: The high-pressure injection allows for very thin and intricate designs.

● Durable Tooling: The steel dies last a very long time, producing many parts.

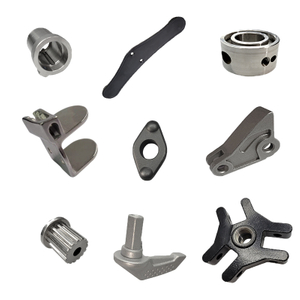

Investment Casting (The Lost Wax Method)

Investment casting is a very old and clever technique. It has been used for thousands of years. Ancient civilizations used it to make jewelry and statues. Today, we use it for high-tech parts. It is famous for creating incredibly detailed and smooth surfaces. People often call it the "lost wax" method. The name gives a clue about how it works. A wax model is made, and then it is "lost" to create the final part.

This method is a top choice for Precision Casting. It delivers amazing accuracy. It can create shapes that other methods cannot. Let’s look at the steps involved. They show why this process is so special.

The Step-by-Step Process

Making a part with investment casting is like a detailed art project. It requires patience and skill. Each step is very important.

1.  Create the Master Pattern: First, a master pattern is made. This pattern is an exact replica of the final part. It is usually carved from wax, plastic, or even 3D-printed material. The pattern needs to be perfect. Any flaw here will show up in the final product.

2.  Make the Mold: The wax pattern is then used to create a mold. This is not the final mold for the metal. It is a mold to make more wax patterns. Usually, this mold is made from silicone or metal. It allows us to produce many wax copies quickly.

3.  Produce Wax Patterns: Liquid wax is injected into this mold. It cools and hardens into a perfect copy of the master pattern. This step can be repeated hundreds or thousands of times. It depends on how many parts are needed.

4.  Assemble the Wax Tree: The individual wax patterns are then attached to a central wax stick. This structure looks like a tree. The central stick is called a sprue. The patterns are the branches. This tree allows molten metal to flow to all patterns at once. It makes the process very efficient.

5.  Build the Ceramic Shell: Now for the "investment" part. The entire wax tree is dipped into a ceramic slurry. Think of it like a ceramic milkshake. After dipping, it is coated with a fine sand or stucco. This process is repeated many times. Each layer is allowed to dry. This builds a strong, thick ceramic shell around the wax tree. The shell can be up to half an inch thick.

6.  Dewaxing (Losing the Wax): The ceramic shell is then placed in an oven or a steam autoclave. The high heat melts the wax inside. The wax flows out of the shell through the sprue. This leaves a hollow cavity inside the ceramic shell. The cavity is a perfect negative image of the part. The wax is now "lost."

7.  Pouring the Molten Metal: The hollow ceramic shell is heated to a high temperature. This removes any leftover moisture or wax. It also prevents the shell from cracking when the hot metal is poured. Molten metal is then poured into the hollow shell. It fills every tiny detail of the cavity.

8.  Cooling and Solidification: The metal-filled shell is left to cool. As it cools, the metal becomes a solid object. The cooling time depends on the type of metal and the size of the part.

9.  Breaking the Shell: Once the metal is solid, the ceramic shell is broken away. This is often done with hammers or high-pressure water jets. The shell is destroyed in this process. That means a new shell is needed for every casting.

10.  Finishing the Parts: The individual parts are cut from the central "tree." They may need some finishing touches. This could include grinding, sanding, or polishing. These steps remove any marks from the casting process.

Materials Used in Investment Casting

Investment casting is very versatile. It works with a wide range of metals. This flexibility makes it useful for many industries.

● Stainless Steel: This is a popular choice. It resists rust and corrosion. It is strong and looks good. You find it in medical devices, food equipment, and boat parts.

● Carbon Steel: This is a strong and affordable option. It is used for parts that need to be tough and durable. Think of parts for cars and machinery.

● Alloy Steel: These are special steel types. They have other elements added to them. These elements can make the steel stronger, harder, or more resistant to heat. They are used in high-performance applications like aerospace.

● Aluminum Alloys: Aluminum is lightweight and resists rust. It is a great choice for parts where weight is a concern. You see it in aircraft components and electronics.

● Copper Alloys: Metals like bronze and brass are copper alloys. They are known for their beautiful colors and good conductivity. They are often used for decorative items, plumbing fixtures, and electrical components.

Advantages:

● Incredible Detail: It can create very fine details and complex geometries.

● Excellent Surface Finish: The parts come out very smooth. This reduces the need for secondary polishing.

● Wide Material Choice: It works with almost any type of metal.

● High Accuracy: The process produces parts that are very close to the original design dimensions.

● Reduces Machining: Because the parts are so accurate, less follow-up work is needed.

Comparing the Techniques

Choosing the right Precision Casting method is crucial. It depends on many factors. Your design, your budget, and how many parts you need all play a role. Let's compare these three major techniques side-by-side. This will help clarify which one might be best for a specific project.

This table gives a quick overview. It helps you see the main differences at a glance.

When to Choose Which Method?

Let's break it down into simple questions.

● How complex is your part?

○ If it has incredibly fine details, undercuts, and a complex internal structure, Investment Casting is your best friend. It captures artistry.

○ If the shape is relatively simple and blocky, Sand Casting is a great, economical choice. It is about function over form.

○ If it has thin walls and complex shapes that need to be made thousands of times, Die Casting is the champion. It is about precision at speed.

● How many parts do you need?

○ For a one-off prototype or a small batch of a few hundred, Sand Casting or Investment Casting are good options. The initial costs are lower.

○ If you need thousands or millions of identical parts, Die Casting is the only way to go. The high cost of the die is justified by the extremely low cost per part.

● What material do you need?

○ If you need to use steel or stainless steel, your main choices are Investment Casting and Sand Casting.

○ If you can use aluminum, zinc, or magnesium, then Die Casting becomes a very strong contender, especially for high volumes.

● How important is the surface finish?

○ If you need a part that looks great right out of the mold, choose Investment Casting or Die Casting.

○ If you are planning to machine the part anyway, the rough surface of Sand Casting is not a problem.

Beyond the Initial Casting: Secondary Processes

A metal part is often not finished when it comes out of the mold. It might need extra steps to get it ready for its final job. These are called secondary processes. They can improve the part's strength, appearance, or functionality. Good Precision Casting providers also offer these services. It ensures the part is perfect from start to finish.

Heat Treatment

Heat treatment is like a spa day for metal. It involves carefully heating and cooling the part. This changes the internal structure of the metal. It can make the part stronger, harder, or more flexible.

● Annealing: This makes the metal softer and easier to machine.

● Quenching and Tempering: This is a two-step process to make steel parts very hard and tough.

● Normalizing: This refines the grain structure of the steel. It improves its strength and uniformity.

Surface Treatment

This is all about how the part looks and how it resists the environment.

● Shot Blasting: Tiny steel balls are shot at the part. This cleans the surface and removes any scale or sand. It creates a uniform matte finish.

● Painting or Powder Coating: A layer of paint or a special powder is applied. This protects the part from rust and gives it a specific color. Powder coating is very durable.

● Electroplating: A thin layer of another metal (like chrome, nickel, or zinc) is applied to the surface. This can be for decoration or to prevent corrosion.

● Polishing: The surface is buffed to a smooth, shiny finish. This is often done for decorative parts or parts that need to be very clean.

CNC Machining

Sometimes, a casting needs features that are too precise for the casting process alone. This is where CNC machining comes in. CNC stands for Computer Numerical Control. A computer guides a cutting tool to remove metal from the casting. It can create very precise holes, flat surfaces, or threads. Combining Precision Casting with CNC machining gives you the best of both worlds. You get the complex shape from casting and the ultra-high precision from machining.

The Future of Precision Casting

The world of manufacturing is always changing. New technologies are making Precision Casting even better. One of the most exciting developments is the use of 3D printing.

Instead of making a physical pattern from wood or wax, companies can now 3D print the pattern directly from a computer file. For investment casting, they can 3D print the wax patterns. For sand casting, they can even 3D print the sand molds themselves.

This has huge advantages:

● Speed: It is much faster to print a pattern than to machine one. This is great for making prototypes quickly.

● Complexity: 3D printing can create shapes that are impossible to make with traditional methods. This gives designers even more freedom.

● Cost-Effective for Prototypes: For a single prototype, printing a pattern is much cheaper than creating traditional tooling.

This technology is not replacing traditional methods. It is working with them. It is making the process of Precision Casting faster, more flexible, and more powerful than ever before. It helps engineers test ideas quickly before committing to expensive tooling for mass production.

FAQ

Q1: What is the most accurate precision casting method?

A: Generally, die casting and investment casting offer the highest dimensional accuracy. Die casting is incredibly consistent over high volumes. Investment casting is excellent for achieving tight tolerances on very complex, one-piece designs. The choice between them often depends on the material and production quantity.

Q2: Why would I need CNC machining on a cast part?

A: You would need CNC machining when a specific feature on the part requires a tighter tolerance than casting can provide. For example, casting can create a hole, but CNC machining is needed to make that hole perfectly round and to cut precise threads inside it for a bolt. It's about adding a final layer of precision where it's most needed.

Q3: Can I get a steel part that has a very smooth surface?

A: Yes. The best way to achieve this is with investment casting. This process is well-suited for steel and naturally produces a very smooth surface finish. If you need an even smoother, mirror-like finish, secondary polishing would be the next step after casting.

Q4: How long does it take to get a cast part?

A: It varies a lot. A simple sand-cast prototype might be made in a week or two. A complex investment casting can take several weeks because of the time needed to build and dry the ceramic shell. For die casting, making the initial steel die is the longest part, which can take months. However, once the die is ready, parts can be produced in seconds.
