Casting is a manufacturing process. It involves pouring molten material into a mold. The mold contains a hollow cavity. This cavity has the desired shape. The material solidifies within the mold. Then a solidified part is ejected or broken out. Casting is used to make complex shapes. These shapes are difficult or uneconomical to make by other methods. It's an ancient process. It has been used for thousands of years. It remains important in modern manufacturing.
Patterns are crucial in casting. They are replicas of the final object. Patterns create the cavity in the mold. Molten material fills this cavity. The pattern material must be carefully chosen. This choice affects the casting's quality and cost.
Think of patterns as the masters. They're used to create a negative space. This space will be filled with molten metal. The pattern is removed. It leaves behind a cavity. This cavity is the shape of the desired casting.
Patterns are slightly larger than the final product. This accounts for shrinkage. Metals contract as they cool. This contraction needs to be considered. Different metals shrink differently. The pattern's size is adjusted accordingly.
Many materials are used for patterns. The choice depends on several things. It depends on the casting process used. It also depends on the number of castings needed. The desired accuracy and cost also factor in. Common pattern materials include wood, metal, plastic, wax, and foam. Each has unique properties. These properties make them suitable for different applications.
● Wood: It is a traditional choice. Wood is easy to work with. It is also relatively inexpensive. Different types of wood are used. These include pine, mahogany, and plywood. Pine is soft and easy to shape. Mahogany is more durable. Plywood offers good stability. Wood patterns are often coated. This protects them from moisture. Varnish or paint is usually used. Despite its advantages, wood is susceptible to moisture. This can cause it to warp or swell. This limits its use in high-volume production.
● Metal: Metals like aluminum and cast iron are used. They are durable and dimensionally stable. Aluminum is lightweight. Cast iron is strong. Metal patterns are more expensive than wood patterns. They are suitable for high-volume production. They are also used when accuracy is critical. Metal patterns are resistant to wear. They maintain their shape over many uses. This makes them ideal for automated molding processes.
● Plastic: Plastics offer a good balance. They have dimensional stability and durability. They are lighter than metals. Different types of plastics are used. These include epoxy resins and urethanes. Epoxy resins are strong and chemical resistant. Urethanes are flexible. Plastic patterns can be easily molded. They can also be machined. They are used in a wide range of casting processes. They are a cost-effective alternative. This is especially when compared to metal patterns.
● Wax: Wax patterns are used in investment casting. This is also called precision casting. Wax allows for intricate details. It melts away completely during the process. This eliminates the need for pattern removal. Special waxes are used. They have specific melting points and flow properties. This ensures accurate reproduction of the desired shape. Wax patterns are fragile. They require careful handling. They are ideal for complex parts. These parts need high dimensional accuracy.
● Foam: Expandable polystyrene (EPS) foam is used. It is used in the lost foam casting process. The foam pattern is left in the mold. It evaporates when the molten metal is poured. This simplifies the casting process. It eliminates the need for pattern removal. Foam patterns are lightweight. They can be easily shaped. They are suitable for large castings. These are castings where the pattern complexity is moderate. The foam must be of good quality. This ensures it evaporates cleanly. It should not leave residue in the mold.
An ideal pattern material should possess certain properties. These properties ensure accurate and efficient casting. These properties also contribute to the overall quality of the final product. Choosing the right material is essential. This will optimize the casting process.
● Easy to work with: The material should be easily shaped. It should also be easy to join and finish. This reduces manufacturing time. It also reduces costs. Wood is easy to cut and shape. Plastics can be easily molded. Metals require machining. The ease of working depends on the complexity of the pattern.
● Dimensionally stable: It shouldn't change size or shape. This is due to temperature or humidity changes. Dimensional stability is crucial. It ensures the final casting meets specifications. Metals and some plastics offer excellent stability. Wood is more susceptible to changes.
● Durable: It should withstand handling. It should also withstand repeated use without damage. Durability is important. It is important for high-volume production. Metal patterns are the most durable. Wood patterns are less durable. Plastic patterns offer moderate durability.
● Moisture resistant: The material shouldn't absorb moisture. Moisture can cause warping or swelling. Moisture resistance is crucial. It is crucial for maintaining accuracy. Wood is highly susceptible to moisture. Metals and plastics are generally moisture resistant.
● Chemically inert: It shouldn't react with the molding material. Chemical inertness prevents unwanted reactions. These reactions can affect the casting quality. Most pattern materials are chemically inert. However, certain combinations should be avoided.
● Cost-effective: The material should be affordable. This affordability should align with the production volume. Cost is always a consideration. Wood is the least expensive option. Metal is usually the most expensive. Plastic offers a good balance between cost and performance.
● Smooth surface: A smooth surface is needed. It helps in easy removal from the mold. Smooth patterns create smooth castings. This reduces the need for additional finishing. Wax and plastic patterns can produce very smooth surfaces. Metal patterns can also be polished.
Wood was one of the earliest pattern materials used. It is still used today, especially for large castings. Different types of wood are used. These include pine, mahogany, and plywood.
Advantages of Wood Patterns:
● Low cost: Wood is relatively inexpensive.
● Easy to fabricate: It can be easily cut, shaped, and joined.
● Lightweight: Wood is easy to handle.
Disadvantages of Wood Patterns:
● Susceptible to moisture: Wood can absorb moisture. This causes warping and swelling.
● Low durability: It is not as durable as metal or plastic.
● Limited life: Wood patterns wear out faster. This is especially true in high-production environments.
To protect wood patterns, they are often coated. The coating is with varnish or paint. This helps to seal the wood. It prevents moisture absorption.
Metal patterns are used. They are used when high accuracy and durability are required. Common metals include aluminum, cast iron, and brass.
Advantages of Metal Patterns:
● High durability: Metals withstand repeated use.
● Dimensionally stable: They resist changes in size and shape.
● Smooth surface finish: Metal patterns produce smooth castings.
Disadvantages of Metal Patterns:
● High cost: Metals are more expensive than wood or plastic.
● Difficult to fabricate: They require specialized tools.
● Heavyweight: Metals are heavier. This makes them harder to handle.
Metal patterns are used in automated molding processes. They are also used for precision casting. This is because of their accuracy.
Plastic patterns offer a compromise. They balance cost, durability, and dimensional stability. Epoxy resins, urethanes, and other polymers are common choices.
Advantages of Plastic Patterns:
● Good dimensional stability: Plastics resist changes in size.
● Moderate cost: They are less expensive than metals.
● Lightweight: Plastics are easier to handle than metals.
● Good surface finish: They can produce smooth castings.
Disadvantages of Plastic Patterns:
● Less durable than metal: They are not as strong as metal patterns.
● Susceptible to some chemicals: Certain chemicals can damage plastics.
Plastic patterns are widely used. They are used in various casting processes. This includes sand casting and investment casting.
Wax patterns are exclusively used. They are used in investment casting. This process is also known as lost wax casting. The wax pattern is created. It is created by injecting molten wax into a die.
Advantages of Wax Patterns:
● High accuracy: Wax patterns can capture fine details.
● Smooth surface finish: They produce castings with excellent surfaces.
● Easy to remove: Wax melts away completely.
Disadvantages of Wax Patterns:
● Low strength: Wax patterns are fragile.
● Low melting point: They can deform easily.
● Process limitations: Only suitable for investment casting.
Wax patterns are used in precision casting. This is for jewelry, dental prosthetics, and aerospace components.
Foam patterns are used. They are used in the lost foam casting process. This process is also called evaporative pattern casting. Expandable polystyrene (EPS) foam is the common choice.
Advantages of Foam Patterns:
● Simple process: The foam pattern is left in the mold.
● No draft required: Complex shapes can be cast.
● Good surface finish: Foam patterns produce smooth castings.
Disadvantages of Foam Patterns:
● Low strength: Foam patterns are very fragile.
● Gas evolution: The evaporating foam can create gases.
● Pattern cost: Foam patterns can be expensive.
Foam patterns are used. They are used for engine blocks, cylinder heads, and other automotive parts.
Patterns are made larger. They are made larger to compensate for metal shrinkage. This is called shrinkage allowance. Other allowances are also considered. These ensure the final casting meets specifications.
● Shrinkage Allowance: Molten metals contract. They contract as they cool and solidify. The pattern is made larger. It compensates for this contraction. Different metals have different shrinkage rates.
● Draft Allowance: Draft is the taper. It is on vertical surfaces of the pattern. This taper allows easy removal of the pattern. It is from the mold.
● Machining Allowance: Extra material is added. This material is added to surfaces that will be machined. This allows for clean-up. It also allows for achieving final dimensions.
● Distortion Allowance: Some castings distort. They distort during cooling. The pattern is intentionally distorted. It is distorted in the opposite direction. This compensates for the expected distortion.
Patterns are made using various techniques. These techniques depend on the material and complexity.
● Wood Pattern Making: Wood patterns are made. They are made using woodworking tools. These tools include saws, chisels, and planes. Patterns are assembled. They are assembled using glue and fasteners.
● Metal Pattern Making: Metal patterns are machined. They are machined using CNC machines. They can also be cast. They can also be fabricated from sheet metal.
● Plastic Pattern Making: Plastic patterns are machined. They are also cast in molds. 3D printing is increasingly used. It is used to create plastic patterns.
● Wax Pattern Making: Wax patterns are made. They are made by injecting molten wax into dies. These dies are often made of metal.
● Foam Pattern Making: Foam patterns are cut. They are cut from foam blocks. They are cut using hot wires. They are also molded.

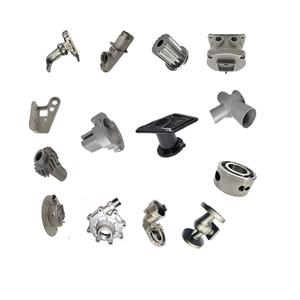

Precision casting methods are employed. They are employed when intricate and high-quality parts are needed. Precision casting provides superior accuracy. It also gives excellent surface finishes. Precision casting minimizes the need for extensive machining. This saves time and resources.
Investment casting is a precision casting process. Ceramic shell casting is another precision casting process. These processes use specialized pattern materials. These materials are wax or plastic. They create highly detailed molds. These molds are capable of producing complex geometries. These geometries have tight tolerances.
The selection of pattern material is critical. It is critical in precision casting. It affects the accuracy. It also affects the surface finish. It affects the overall quality of the final casting.
Material | Advantages | Disadvantages | Applications |
Wood | Low cost, easy to fabricate, lightweight | Susceptible to moisture, low durability, limited life | Large castings, one-off patterns |
Metal | High durability, dimensionally stable, smooth surface | High cost, difficult to fabricate, heavyweight | High-volume production, automated molding, precision casting |
Plastic | Good dimensional stability, moderate cost, lightweight | Less durable than metal, susceptible to some chemicals | Sand casting, investment casting |
Wax | High accuracy, smooth surface, easy to remove | Low strength, low melting point, process limitations | Investment casting, jewelry, dental prosthetics |
Foam | Simple process, no draft required, good surface finish | Low strength, gas evolution, pattern cost | Engine blocks, cylinder heads, automotive parts |
Several factors influence the choice of pattern material:
1. Production Volume: High-volume production justifies more durable materials. These materials include metal or plastic. Low-volume production may favor wood.
2. Casting Process: Investment casting requires wax patterns. Lost foam casting requires foam patterns. Sand casting can use wood, metal, or plastic.
3. Dimensional Accuracy: Metal patterns are preferred. They are preferred for tight tolerances.
4. Surface Finish: Wax and plastic patterns produce smoother surfaces.
5. Cost: Wood is the least expensive. Metal is the most expensive.
6. Size and Complexity: Large and complex patterns may require specific materials. This is to maintain stability.
Research continues to advance pattern material technology. This leads to improved casting processes.
● 3D Printed Patterns: 3D printing allows rapid prototyping. It also allows for creating complex patterns. This technology is used with plastics and wax.
● Composite Materials: Composite materials offer enhanced properties. This includes increased strength. It also includes dimensional stability.
● Improved Coatings: Advanced coatings protect patterns. They extend their lifespan.
Q1: What is a pattern in casting?
A pattern is a replica. It is a replica of the final casting. It is used to create a mold cavity. Molten material fills this cavity.
Q2: Why are patterns made larger than the final product?
Patterns are made larger. They are made larger to compensate for metal shrinkage. Metals contract. They contract as they cool and solidify.
Q3: What is the best material for patterns?
The "best" material depends on the specific application. Factors include production volume, casting process, and desired accuracy.
Q4: What is precision casting, and how do pattern materials relate to it?
Precision casting methods are used. They are used when high accuracy is needed. It also requires excellent surface finish. Pattern material selection is critical. It is critical in achieving these results.
